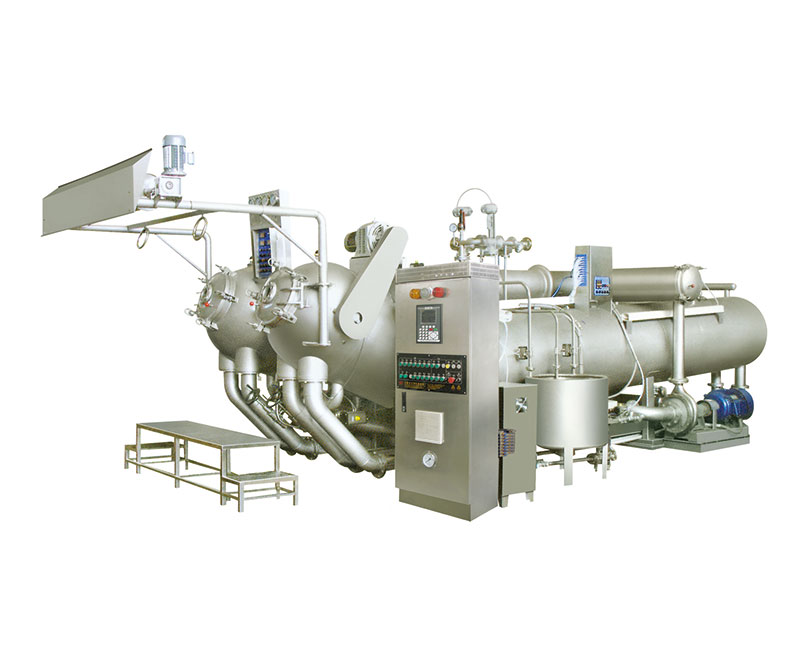

WBA HIGH TEMPERATURE AND RAPID SPARY DYEING MACHINE
Extralarge capacity: a.Short investment recovery period;b.Reduction of dyeing difference between troughs in batch production;c.increasing productive efficiency.
Category：Piece cloth dyeing machine series
Product
Standard features
Extralarge capacity: a.Short investment recovery period;b.Reduction of dyeing difference between troughs in batch production;c.increasing productive efficiency.
Flexible water flow produces smaller impact on surface of high-grade cloth to be ensure cloth to be non-piling and yarn to be non-twisting
Specially designed bending heads can meet the require-ments of no dead corner, small tension and bath ratio
Schematic diagram
技术参数
Model ltem | WBA-300 | WBA-600 | WBA-1200 | |||
Number of tuber/chamber | 1/2 | 214 | 4/8 | |||
Max.capacity | Model | 200～300 | 450～600 | 900～1200 | ||
Model | 450～650 | 1000~1300 | 2000～2650 | |||
Liquarration | 1:6～10 | |||||
Max.Working temperautre(℃) | 140℃ | |||||
(RPM)Speed | 0~600 | |||||
Cooling rate(min) | 35 | |||||
Cooling rate(min) | 30 | |||||
Total motor power(Kw) | 27.9 | 53.45 | 88.95 | |||
Space required (mm) | Length | L1 | 8415 | |||
L2 | 10070 | |||||
Width | 2150 | 3300 | 6150 | |||
Height | H1 | 2080 | ||||
H2 | 2960 | |||||
