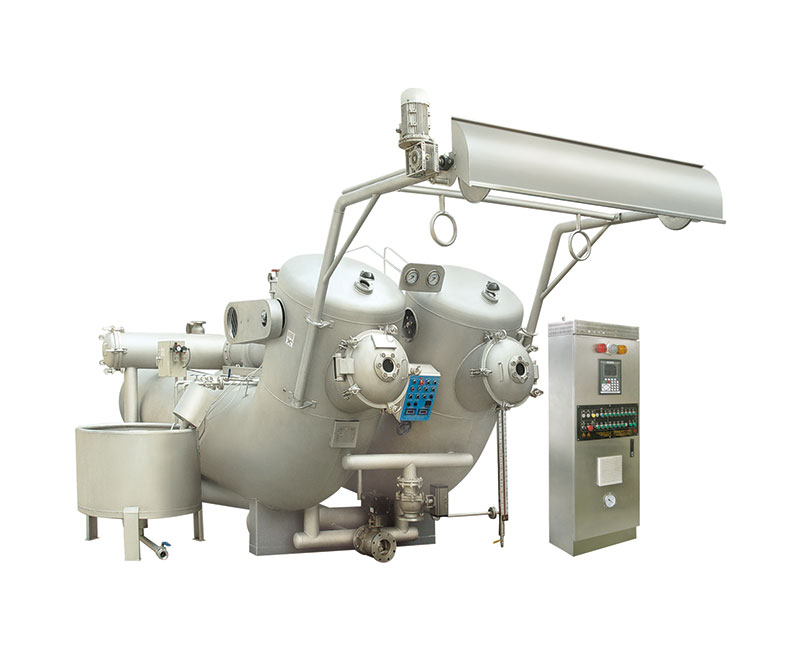

WBD HIGH TEMPERATURE DOUBLE OVERFLOW DYEING MACHINE
WBD High Temperature And Double Overflow Dyeing Machine uses the unique design of dual-purpose nozzle for overflow and jet.
Category：Piece cloth dyeing machine series
Product
Standard features
Machine body and all parts wetted by dye liquid made of abroad corrosion resistant stainless steel
Fabric storage unit is laid with high-strength teflon plate.
Heavy duty stainless steel circulation pump with motor driven by frequency inverter.
Mesne heat exchanger and replaceable filter insert.
Magnetic roll over level controller.
Service tank with feed pump and ralves.
Infinitely variable speed lifter reel driven by frequency.
Take-off roller.
Large memory microprocessor controller.
Stainless steel electricity cabinet.
Stainless steel service platform.
Each tubes separates into two chamber (running two ropes at same time-see diagrame)
Big bend tube can save 10% water & space.
技术参数
Model / ltem | WBD-150 | WBD-250 | WBD-500 | WBD-1000 | |||
Number of tubes/chambers | 1/2 | 1/2 | 2/4 | 4/8 | |||
MaxCapacity(Kg) | 150 | 250 | 500 | 1000 | |||
Liquor ratio | 1:6-10 | ||||||
Max working temperature(℃) | 140℃ | ||||||
Speed(RPM) | Tetflow | 0-45C | |||||
Overflow | 0-250 | ||||||
Heating rate(Min) | 35 | ||||||
Cooling rate(Min) | 30 | ||||||
Total motor power(KW) | 20.9 | 20.9 | 38.45 | 68.95 | |||
Space required(mm) | Length | L1 | 5490 | 6990 | 6990 | 6990 | |
L2 | 6590 | 8090 | 8090 | 8090 | |||
Width | 1700 | 1700 | 3100 | 6050 | |||
Heigh | H1 | 2300 | 2300 | 2300 | 2400 | ||
H2 | 3080 | 3080 | 3080 | 3180 | |||
