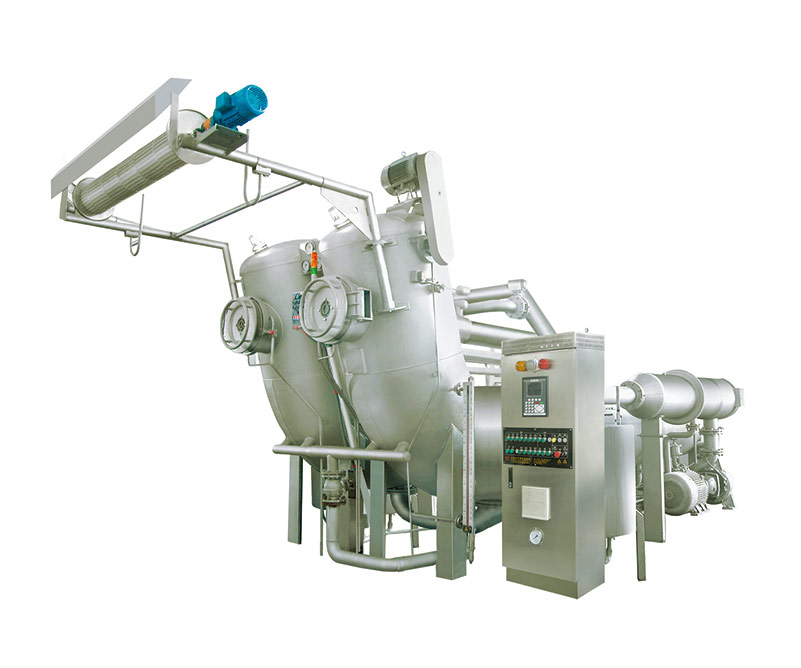

WBC HIGH TEMPERATURE HIGH PRESSURE DYEING MACHINE
WBC High-temperature, High-pressure Dyeing Machine novel spraying system and fabric lifting and delivering system are used for greatly increasing fabric loading and speed as well as reducing bath ratio.
Category：Piece cloth dyeing machine series
Product
Technical data
Max.working temperature：140℃
Max.working pressure:0.40Mpa
Heating gradient: 25℃-100℃ average 5℃/min 100℃-130℃ average 2.5℃/min(at saturated steam pressure of 0.7Mpa)
Cooling gradient: 130℃-100℃ average 3℃/min 100℃-85℃ average 2℃/min (at water pressure of 0.3Mpa)
Technical parameters
Model | No.of Tubaes | Capacity(kg) | Total power(KW) | Dimensions | ||
|---|---|---|---|---|---|---|
(L) | (W) | (H) | ||||
WBC-300 | 1 | 200-300 | 20.9 | 6920 | 2030 | 3105 |
WBC-400 | 1 | 300-400 | 24.4 | 8420 | 2030 | 3105 |
WBC-500 | 1 | 400-500 | 24.4 | 9920 | 2030 | 3105 |
WBC-800 | 2 | 650-800 | 45.05 | 8420 | 3580 | 3105 |
WBC-1000 | 2 | 800-1000 | 45.05 | 9920 | 3580 | 3105 |
WBC-1200 | 3 | 1000-1200 | 54.95 | 8420 | 4780 | 3205 |
WBC-1500 | 3 | 1200-1500 | 54.95 | 9920 | 4780 | 3205 |
WBC-1600 | 4 | 1300-1600 | 68.9 | 8420 | 6680 | 3205 |
WBC-2000 | 4 | 1600-2000 | 68.9 | 9920 | 6680 | 3205 |
Schematic diagram
Why choose us?
We actively introduce excellent production equipment and testing from abroad, attach importance to personnel training and technological innovation, and have strong technical strength and experienced R&D personnel.
Our product technology is perfect, the craftsmanship is excellent, the structure is reasonable, the performance is reliable, and the quality is reliable, enjoying a good reputation both domestically and internationally.
Our product sales network is not only spread throughout the country, but also exported to developed countries and regions such as Taiwan, Europe, the United States, Russia, Germany, Australia, etc.
The services we can provide
Planning: We are committed to providing customers with comprehensive and detailed planning.
Maintenance: No matter if you have any questions about the product, you can contact us. We will patiently answer your questions and provide convenient and fast maintenance services.
