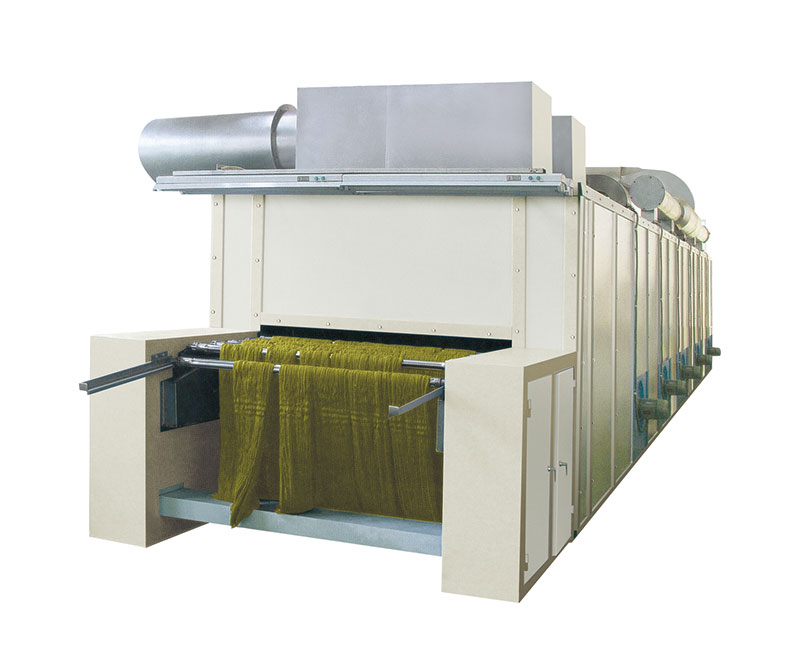

DC CONTINUOUS HANK YARN DRYER
Body being built with spiral cooling fins and lined with heat,resistant fibre glass material inside to ensure heat insulation.Adopt hot air circulation system save energy and ensure uniform moisture for dried hank.
Category：Other dyeing machine series
Product
Product Features
Body being built with spiral cooling fins and lined with heat,resistant fibre glass material inside to ensure heat insulation.
Adopt hot air circulation system save energy and ensure uniform moisture for dried hank.
Speed of main and auxiliary driveing chains is adjustable by inverter for meeting drying requirement of various hank yarns.
A dehumidifier, which is installed at each chamber, can ensure energysaving effect.
Each two sets of drying chambers was eqnipped with an independent automatic temperature control system so as to keep small temperature deviation.
Cooling fan installed at both ends to improve the working environment.
Hankcarrier bar of light weight stainless steel for easy handling.
Accessories
Auxiliary driving chain,brings the hankcarrier bars to rotate intermittently in the chamber, thus ensuring more unifbrm heat distribution.
Cooling fan can control carrying off heat from inside the machine. lt can also lower the temperature of yarn.
Belt conveyor, facilitates transport of hankcarries bars from the delivery end to the feed end.
Technical parameters
Model | Nominal Capacity | Total power | Heat Transfer Area | Dimensions | Gross Weight | ||||||
Acrylic | Wool | Cotton | L₁ | L₂ | W₁ | W₂ | H | ||||
kg/H | kg/H | kg/H | kw | m² | mm | mm | mm | mm | mm | kg | |
DC-3 | 400 | 200 | 150 | 19.8 | 202 | 8260 | 11260 | 2840 | 3270 | 2900 | 6500 |
DC-4 | 540 | 270 | 200 | 24.9 | 270 | 10180 | 13180 | 2840 | 3270 | 2900 | 8000 |
DC-5 | 680 | 340 | 250 | 30.7 | 338 | 12100 | 15100 | 2840 | 3270 | 2900 | 9500 |
DC-6 | 820 | 410 | 300 | 35.8 | 405 | 14020 | 17020 | 2840 | 3270 | 3200 | 11000 |
DC-7 | 960 | 480 | 350 | 43.8 | 472 | 15940 | 18940 | 2840 | 3270 | 3200 | 12500 |
DC-8 | 1100 | 550 | 400 | 48.9 | 540 | 17860 | 20860 | 2840 | 3270 | 3200 | 14000 |
DC-9 | 1240 | 620 | 450 | 55.88 | 608 | 19780 | 22780 | 2840 | 3270 | 3200 | 15500 |
